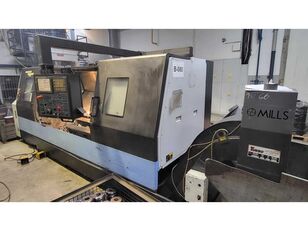

Sprzedam tokarkę do metalu Doosan PUMA 400LB poprzez aukcję

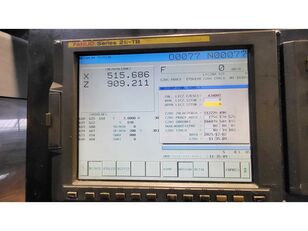

FANUC F21iTB control,
swing over bed - 770 mm,
turning diameter (recommended) - 380 mm,
maximum turning diameter - 550 mm,
maximum turning length - 2,093 mm,
work in the chuck - 700 kg,
work with a bar (tailstock) - 1,700 kg,
bar diameter in the spindle - 116.5 mm,
spindle holder - 380 mm,
spindle - A2#11 ASA,
spindle diameter (front/rear) - (180/170) mm,
spindle bore 132 mm,
spindle taper clearance - Φ 117.5 mm,
Cylinder clearance - Φ 117.5 mm,
Spindle motor power (continuous/30 min) - Fanuc α 22 22/26 kW,
Spindle speed range - 2,000 rpm,
Maximum spindle torque - 1,761 N.m,
X axis feed - 362 (87 + 275) mm
Z axis feed - 2,155 mm
X axis rapid traverse - 16 m/min
Z axis rapid traverse - 18 m/min
X axis servo motor - Fanuc α 22 / 3,000iB 4.0 kW
Z axis servo motor - Fanuc α 40 / 3,000i 7.0 kW
Bed and saddle:
Tilt angle - 45 degrees,
Guide:
Bed (Z axis) ) - 420 mm,
X-axis saddle - 360 mm,
Tailstock - 300 mm,
Without DHI Base Holder and tools,
Storage capacity: 10 tools,
Turret position change: 1 position: 0.25 s,
Hydraulic tank capacity: 14 l,
Flow rate: (60 Hz / 50 Hz) (25 / 20.8) l/min,
Pressure: 2.2 kW x 4.0 MPa
Coolant tank capacity: 370 l,
Flow rate: 40 l/min,

Equipment:Programmable tailstock with movable quill,Automatic tool probe,14.5 bar coolant pump,Oil separator,Prepared for installation of the SLU4 hydraulic steady rest,SLU4 hydraulic steady rest,Chip conveyorl
transport dimenions:machine - 5342x179x2317mm,chip conveyor with cooling tank - 4900x1280x1700mm
FANUC F21iTB control, swing over bed - 770 mm, turning diameter (recommended) - 380 mm, maximum turning diameter - 550 mm, maximum turning length - 2,093 mm, work in the chuck - 700 kg, work with a bar (tailstock) - 1,700 kg, bar diameter in the spindle - 116.5 mm, spindle holder - 380 mm, spindle - A2#11 ASA, spindle diameter (front/rear) - (180/170) mm, spindle bore 132 mm, spindle taper clearance - Φ 117.5 mm, Cylinder clearance - Φ 117.5 mm, Spindle motor power (continuous/30 min) - Fanuc α 22 22/26 kW, Spindle speed range - 2,000 rpm, Maximum spindle torque - 1,761 N.m, X axis feed - 362 (87 + 275) mm Z axis feed - 2,155 mm X axis rapid traverse - 16 m/min Z axis rapid traverse - 18 m/min X axis servo motor - Fanuc α 22 / 3,000iB 4.0 kW Z axis servo motor - Fanuc α 40 / 3,000i 7.0 kW Bed and saddle: Tilt angle - 45 degrees, Guide: Bed (Z axis) ) - 420 mm, X-axis saddle - 360 mm, Tailstock - 300 mm, Without DHI Base Holder and tools, Storage capacity: 10 tools, Turret position change: 1 position: 0.25 s, Hydraulic tank capacity: 14 l, Flow rate: (60 Hz / 50 Hz) (25 / 20.8) l/min, Pressure: 2.2 kW x 4.0 MPa Coolant tank capacity: 370 l, Flow rate: 40 l/min, Equipment:Programmable tailstock with movable quill,Automatic tool probe,14.5 bar coolant pump,Oil separator,Prepared for installation of the SLU4 hydraulic steady rest,SLU4 hydraulic steady rest,Chip conveyorl
transport dimenions: machine - 5342x179x2317mm,chip conveyor with cooling tank - 4900x1280x1700mm
length: 6400
height: 2400
width: 2200
