Extrusion equipped with 3-layer blow extinguishing line VAREX, for up to 2600 mm and operation with simatic touch panel SIEMENS, including Corona treater surface treatment device AFS G150M and trim extraction system, 3 extruders MODUL G Multidrive C with automatic filter changer and nozzle diameter 500 mm, melt filters NORDSON K-SWE-160/180 and screen changer equipped with 3-step stage and a compact water temperature control system SINGLE WK4 unit and filter/drain unit K-design type model ES-2600 with the accompanying flexible tubes up to the wall wall warehouse. Complete with double wrapper FILMATIC N and equipped with supply and output on guides in floor with scissor lifts/roller frames ALTEK max. Cap. 3000 kg and digital control screens PROCONTROL, associated safety fences.

THE MOST IMPORTANT TECHNICAL DATA OF EXTRUDER :
- Diameter of the extruder screws: 2 extruders of 70mm and 1 extruder of 105mm.
- Type of film that this line can produce (including thicknesses); PLA and LDPE, thickness from 12μ to 120μ
- Capacity (kg/h): max 150m/min, up to 1000kg/hr
- Maximum diameter of the rolls produced? 1200mm
- Thickness measurement? In-line thickness measurement system.

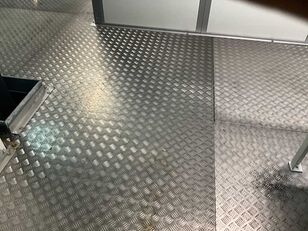

This metal setup/construction consists of 5 different levels of which the platforms are accessible via attached stairs, levels with grid floors.
Including various control cabinets, osmosis device TECHNOTRANS, various blowers including BECKER, 2 large MultiAir blowers with extraction tubes KONGSKILDE, full web control B4 with touch control panel, some various rollers.
Equipped with accompanying control boxes and various switch boxes, supply stations, ROX climate technology unit HYDLC 400 and MULTINIP II and SINGLE STW water control unit and 2 conductors/poutrels with clamp, each max. Cap. 250 kg.

Setup by means of several metal poutrels and equipped with security fencing on each level.
TOTAL SIZE OF THE SET-UP : approximately 15 x 20 x 22 lpm high.
