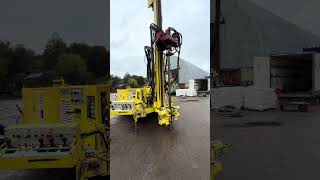

Wiertnica Massenza MI6

MASSENZA M.I.6 DRILLING RIG

Massenza M.I.6 Hydraulic Drilling Rig – 2005
KEY INFORMATION
 Manufacturer: Massenza
 Model: M.I.6
 Type: Hydraulic drilling rig
 Year: 2005
 Serial No.: 2190
 Operating hours: 7,650 h
 Condition: Good
 CE marked: Yes
 Country of manufacture: Italy
DRILLING CAPACITY
 Maximum drilling depth: 200 m
 Suitable for direct rotary drilling and core destruction
 Drilling with water, mud, air
MAIN SPECIFICATIONS
 Mast capacity: 60 kN
 Mast height: 5.5 m
 Maximum peak pull/up: 55 kN
 Maximum operating pull/dowm: 37 kN
 Maximum stroke: 3.7 m with 3 m drill rods
 Rotary head: TM 6
 Maximum peak torque: 6,500 / 8,000 Nm
 Maximum operating torque: 4,300 / 5,300 Nm
 Maximum rotary speed: 120 rpm
 Hydraulic clamp: MS 220 / MS 300
 Maximum clamping force: 125 kN
 Auxiliary diesel engine: 85 / 132 HP (62 / 97 kW)
 Operating winch pull: up to 20 kN
 Lateral translation: 550 mm
HYDRAULIC SYSTEM
 Main circuit maximum pressure setting: 240 / 280 bar
 Main circuit maximum operating pressure: 160 / 185 bar
 Auxiliary circuit maximum pressure setting: 240 bar
 Auxiliary circuit maximum operating pressure: 160 bar

Drill pipes: included
60 psc.-2,5m. D 89,9- 2 3/8 IF- 150m.

CONDITION & DOCUMENTATION
The drilling rig is in good working condition and has 7,650 operating hours.
The machine comes with original manufacturer documentation, including the CE
Declaration of Conformity.
Manufacturer: Massenza fu Giuseppe – Impianti di Perforazione S.r.l., Italy
Price: 70000 EUR
